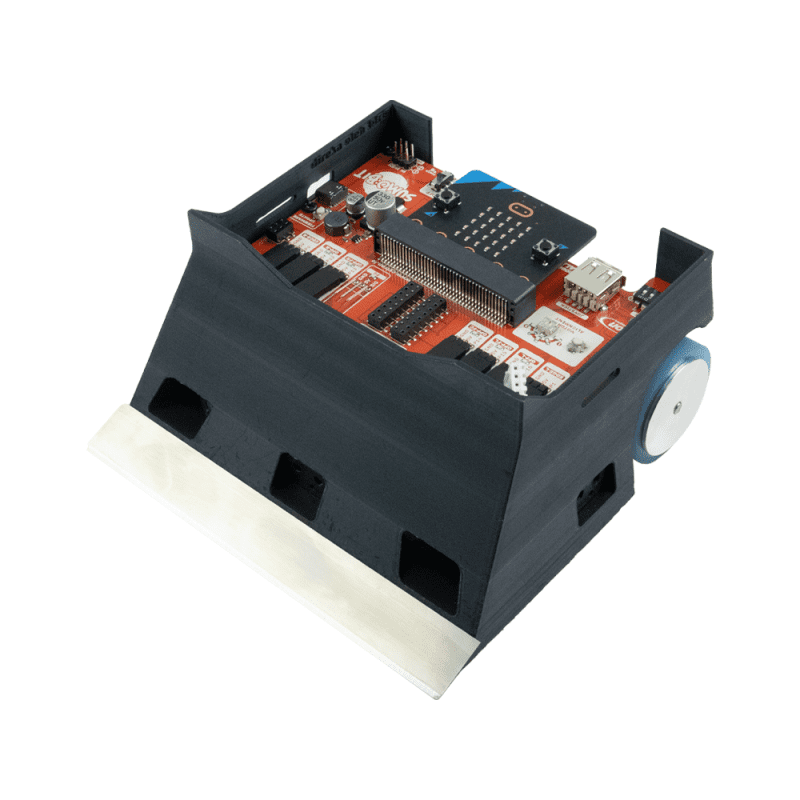

The SUMO:BIT Robot Kits includes everything you need to get started with your first sumo battle!
Get Started with Programming Your SUMO:BIT Using the Microsoft MakeCode Editor
Easily program your SUMO:BIT using the Microsoft MakeCode Editor’s intuitive graphical interface. Begin by installing the SUMO:BIT MakeCode Extension to start creating your own projects.
If you're new to coding, use the block-based mode to simply drag, drop, and connect blocks to build your program. For more experienced users, you can seamlessly switch to JavaScript or Python mode within the MakeCode Editor for text-based coding.
Features:
- Designed for micro:bit, beginner friendly, easy drag and drop code with MakeCode for autonomous Sumo robot
- Co-processed by Raspberry Pi RP2040
- Detachable MD13S motor driver, replace without hassle whenever needed
- Powerful Motor Driver that supports up to 13A (continuous) motors and 30A peak current.
- Mode interchangeable without reprogramming.
- USB host for wireless USB joystick, easily interchangeable between autonomous and remote-controlled within seconds!
- Onboard motor alignment adjust and calibration
- 4-way DIP switch for 16 different winning strategies!
SUMO:BIT Specifications:
- Power Input Voltage (LiPo Battery):
- Min: 7V
- Max: 25V
- Motor PWM Frequency (when connected with MD13S): 20KHz
- Maximum DC Motor Current each Channel (when connected with MD13S): 13A
- Peak Motor Current each Channel (when connected with MD13S: 30A ⚠️must not exceed 10 seconds⚠️
- USB Host Output Voltage: 5V
- USB Host Output Current: 600mA
- Servo Voltage: 5V
- +5V Output Maximum Current (Total): 600mA
