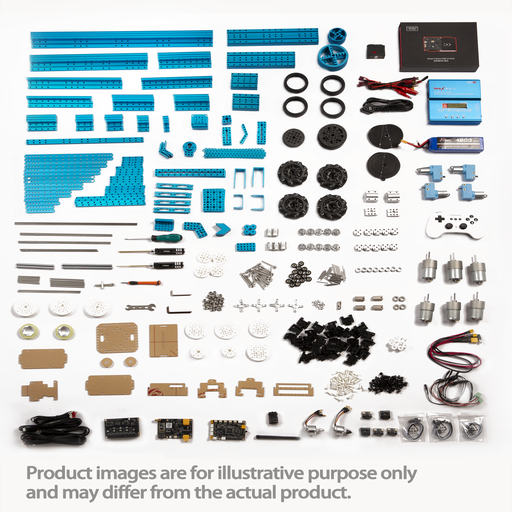

MakeX Challenge Educational Competition Kit
The MakeX Challenge Educational Competition Kit provides:
- abundant electronic and structural parts, allowing you to build robots in more forms and ways.
- Mecanum wheels, promising agile motion of robot cars and thus facilitating the accomplishment of tasks.
- high-performance motors and servos, meeting the needs of large robots in power.
- professional courses for robotics competitions.
Parts List
4 x Slide Beam-016 | 4 x Slide Beam-032 | 8 x Slide Beam-048 | 4 x Slide Beam-080 |
4 x Slide Beam-096 | 4 x Slide Beam-112 | 4 x Slide Beam-144 | 2 x Slide Beam-176 |
2 x Slide Beam-192 | 2 x Slide Beam-256 | 4 x Slide Beam-320 | 4 x Slide Beam-496 |
4 x Slide Beam 2424-072 | 2 x Slide Beam 2424-184 | 2 x Slide Beam 2424-248 | 2 x Beam-076 |
2 x Beam-092 | 2 x Beam 124 | 2 x Beam-156 | 2 x Beam-188-L2-R1 |
2 x Beam-204 | 2 x Beam-220 | 2 x Beam-236 | 4 x Square Beam-056 |
4 x Square Beam-072 | 4 x Square Beam-088 | 4 x Square Beam-104 | 2 x Square Beam-184 |
2 x Beam 0808-184 | 2 x Beam 0808-312 | 4 x Plate 3*6 | 6 x Plate 7*9-B |
4 x Plate 45° | 4 x Plate 3*5*120° | 4 x Plate-056 | 4 x Plate-072 |
4 x Plate-184 | 8 x Bracket 3*3 | 4 x Bracket 3*6 | 4 x Bracket 3*3*120° |
2 x U Bracket B | 10 x Cuttable Linkage | 4 x Double Gear Rack | 4 x Plastic Gear 8T |
6 x Plastic Gear 56T | 10 x Plastic Gear 72T | 4 x Gear 48T | 4 x Gear 80T |
4 x Gear 16T | 2 x Linear Motion Slide Unit 8mm | 4 x Sliding Block A1 | 8 x Belt Connector |
4 x 180 Smart Encoder Motor | 3 x 37mm DC Motor 200RPM | 3 x 37mm DC Motor 50RPM | 6 x 37mm Motor Bracket |
1 x 2823-1F Brushless Motor | 1 x 2823-1Z Brushless Motor | 2 x Brushless Motor Bracket | 2 x Brushless Motor ESC |
2 x Friction Wheel D45*19.5 | 2 x Friction Wheel Ring D28*7 | 8 x PH2.0 Motor Cable | 3 x Ranging Sensor |
1 x Servo MS-12A | 1 x Mounting Bracket | 1 x Rudder Bracket | 1 x Virtual Axis |
1 x LI-PO Battery 3S | 1 x One with Three Power Cords | 1 x B6AC Balance Charger | 1 x Bluetooth Controller |
2 x Bluetooth Module | 1 x Bluetooth Dongle | 1 x Low Voltage Buzzer Alarm | 1 x Mainboard Bracket |
1 x NovaPi Case | 1 x Mainboard NovaPi | 1 x Power Expansion Board | 1 x Power Management Module |
1 x Power Management Module Antenna | 4 x Wafer Cable(200mm) | 8 x Wafer Cable(600mm) | 4 x mBuild Cable(200mm) |
6 x mBuild Cable(600mm) | 1 x USB Cable | 100 x Track | 100 x Track Axle 30mm |
1 x Screwdriver 2mm | 4 x Plastic Timing Pulley 18T | 6 x Plastic Timing Pulley 62T | 6 x Plastic Timing Pulley 90T |
4 x Plastic Timing Pulley 62T for Motor | 4 x Plastic Timing Pulley 90T for Motor | 1 x Tyre 68.5*22mm | 2 x Open-end Timing Belt (5m) |
16 x Aluminum Sleeve 4*6*4mm | 8 x Aluminum Sleeve 4*6*6mm | 16 x Roller | 8 x Nylon Pulley |
4 x Threaded Shaft 4*39mm | 6 x D shaft 4*56mm | 2 x D shaft 4*160mm | 2 x D shaft 4*200mm |
2 x D shaft 4*240mm | 2 x D shaft 4*320mm | 6 x Shaft D4*88mm | 2 x Shaft D8*96mm |
2 x Shaft D8*128mm | 2 x Shaft D4*240mm | 2 x Shaft Claming Hub 8mm | 4 x Bearing 8*16*5mm |
30 x Flange Bearing 4*8*3mm | 4 x Bearing F688ZZ | 5 x Flexible Coupling 4*4mm | 2 x Universal Joint 4-4mm |
30 x Shaft Collar 4mm | 8 x Shaft Collar 8mm | 10 x Shaft Connector V3.0 | 10 x Shaft Connector |
2 x Mecanum Wheel 80mm-L | 2 x Mecanum Wheel 80mm-R | 4 x Mecanum Wheel Coupling 80mm | 4 x Cross Recess Screw PM2.5*30 |
4 x Mecanum Wheel Hub 80mm | 50 x Combination Screw M4*8 | 50 x Combination Screw M4*10 | 100 x Combination Screw M4*14 |
100 x Combination Screw M4*16 | 100 x Combination Screw M4*20 | 50 x Combination Screw M4*30 | 50 x Combination Screw M4*35 |
50 x Combination Screw M4*40 | 20 x Headless Screw M3*5 | 30 x Headless Screw M3*8 | 30 x Cross Recess Screw M3*8-Countersunk Head |
40 x Hex Lock Nut M3 | 20 x Hex Nut M3 | 200 x Hex Nut M4 | 100 x Hex Lock Nut M4 |
100 x Plastic Rivet-R4060 | 100 x Plastic Rivet-R4100 | 100 x Plastic Rivet-R4120 | 50 x Ring 4*7*2 |
30 x Ring 4*7*3 | 20 x Ring 4*7*10 | 1 x Screwdriver 1.5mm | 1 x Screwdriver 3mm |
1 x Wrench 5&7 | 1 x Scredriver Cross&2.5mm | 1 x Small Four-way Socket Wrench | 2 x Allen Wrench 2.5mm |
2 x Allen Wrench 1.5mm | 1 x Support for Power Management Module | 1 x Smart Camera | 4 x Cross Recess Screw M2.5*12 |
